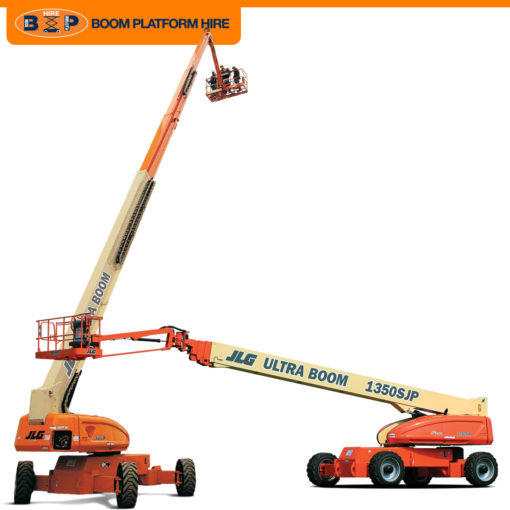

JLG 1350SJP

Key Specs

Horizontal Outreach: 80 ft / 24.38 m
Platform Capacity – Restricted: 1000 lb / 453.59 kg
Platform Capacity – Unrestricted: 500 lb / 226.80 kg
Platform Height: 135 ft / 41.15 m

Key Features

Ground to 135 ft up in 95 seconds
Strong 100,000-psi steel and a dual 1,000 / 500 lb capacity give you stability and capacity
Equipped with a fuel-efficient

Categories: Telescopic Diesel Boom Lift, Specialist Units

or

Overview
Power Source
Performance
Dimensional Data
General

Ground to 135 ft up in 95 seconds
Strong 100,000-psi steel and a dual 1,000 / 500 lb capacity give you stability and capacity
Equipped with a fuel-efficient

Auxiliary Power	12 Volts DC
Capacity - Fuel Tank	31 gal. / 117.35 L
Engine Type - Diesel	DEUTZ TCD2.9L4 Tier 4 Final 74.2 hp

Axle Oscillation	1 ft / 0.3 m
Drive Speed - 4WD	3.25 mph / 5.23 km/h
Gradeability - 4WD	45 %
Platform Capacity - Restricted	1000 lb / 453.59 kg
Platform Capacity - Unrestricted	500 lb / 226.80 kg
Swing	360 Degrees
Swing Type	Continuous
Turning Radius - Outside (axles extended)	19 ft 4 in. / 5.89 m
Turning Radius - Outside (axles retracted)	22 ft 6 in. / 6.86 m

Ground Clearance	1 ft / 0.3 m
Machine Height	10 ft / 3.05 m
Machine Length	48 ft 10 in. / 14.88 m
Machine Width	8 ft 2 in. / 2.49 m
Machine Width - Axles Extended	12 ft 6 in. / 3.81 m
Machine Length - Transport	38 ft 11 in. / 11.86 m
Platform Dimension A	3 ft / 0.91 m
Platform Dimension B	8 ft / 2.44 m
Platform Height	135 ft / 41.15 m
Tailswing	5 ft 6 in. / 1.68 m
Tire Size	445/500710 Foam-Filled

Capacity - Hydraulic Reservoir	55 gal. / 208.20 L
Ground Bearing Pressure	107 psi / 7.49 Kg/cm2
Machine Weight	45000 lb / 20411.66 kg
