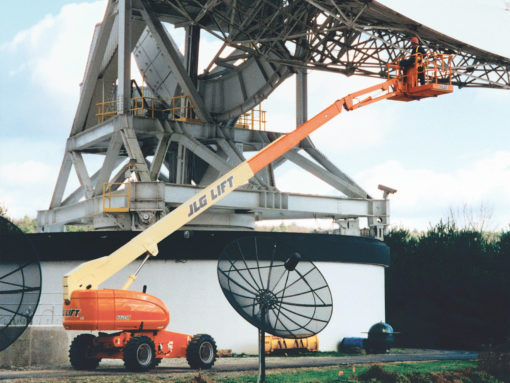

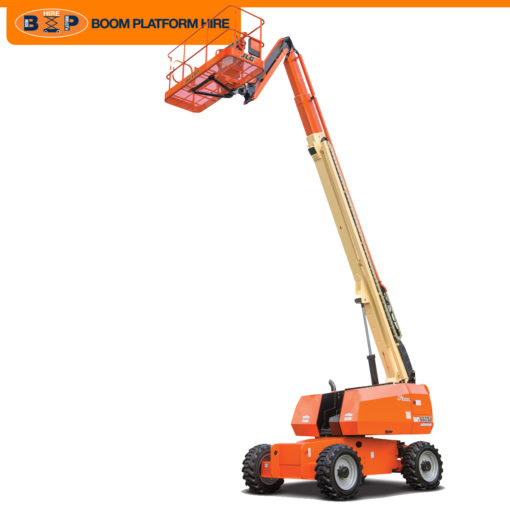

JLG 660SJ

Key Specs

Horizontal Outreach: 56 ft 9 in. / 17.3 m
Platform Capacity – Unrestricted: 500 lb / 226.80 kg
Platform Height: 66 ft 8 in. / 20.32 m

Key Features

Best selling 60 ft boom lifts
Select from 2 models
Easy-to-use platform controls reduce operator training time
Equipped with a fuel-efficient

Category: Telescopic Diesel Boom Lift

or

Overview
Power Source
Performance
Dimensional Data
General

Best selling 60 ft boom lifts
Select from 2 models
Easy-to-use platform controls reduce operator training time
Equipped with a fuel-efficient

Auxiliary Power	12 Volts DC
Capacity - Fuel Tank	40 gal. / 151.42 L
Engine Type - Diesel	DEUTZ TD 2.9L Tier 4 Final 67 hp
Engine Type - Dual Fuel	GM Vortec 3000 MPR 82 hp

Axle Oscillation	8 in. / 0.2 m
Drive Speed - 2WD	4.25 mph / 6.84 km/h
Drive Speed - 4WD	4.25 mph / 6.84 km/h
Gradeability - 2WD	30 %
Gradeability - 4WD	45 %
Platform Capacity - Unrestricted	500 lb / 226.80 kg
Swing	360 Degrees
Swing Type	Continuous
Turning Radius - Outside (2WS)	17 ft 7 in. / 5.36 m
Turning Radius - Outside (4WS)	9 ft 6 in. / 2.9 m

Ground Clearance	1 ft / 0.3 m
Machine Height	8 ft 5 in. / 2.56 m
Machine Length	35 ft 8 in. / 10.87 m
Machine Width	8 ft 2 in. / 2.49 m
Platform Dimension A	3 ft / 0.91 m
Platform Dimension B	8 ft / 2.44 m
Platform Height	66 ft 8 in. / 20.32 m
Tailswing	3 ft 9 in. / 1.14 m
Tire Size	39 x 15-22.5 Lug Tread

Capacity - Hydraulic Reservoir	32 gal. / 121.13 L
Ground Bearing Pressure	75 psi / 5.25 Kg/cm2
Machine Weight	26650 lb / 12088.24 kg
