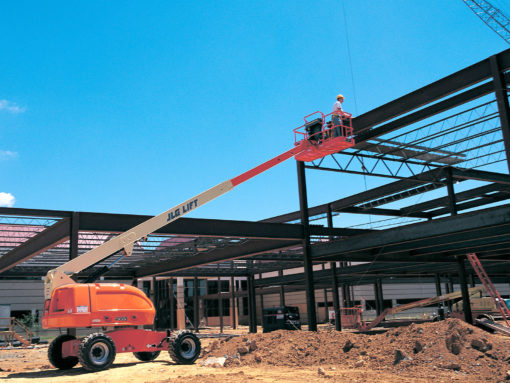

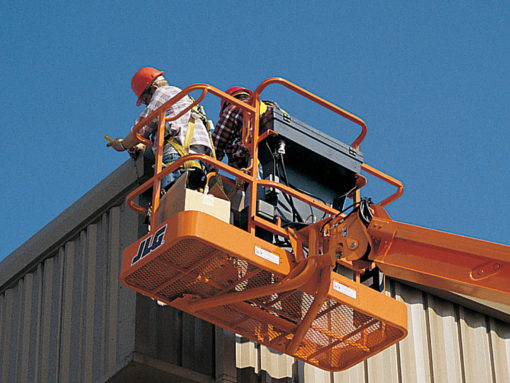

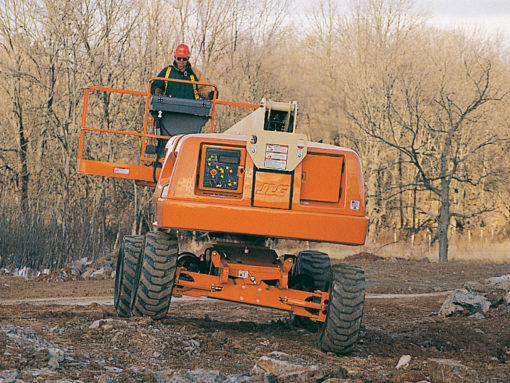

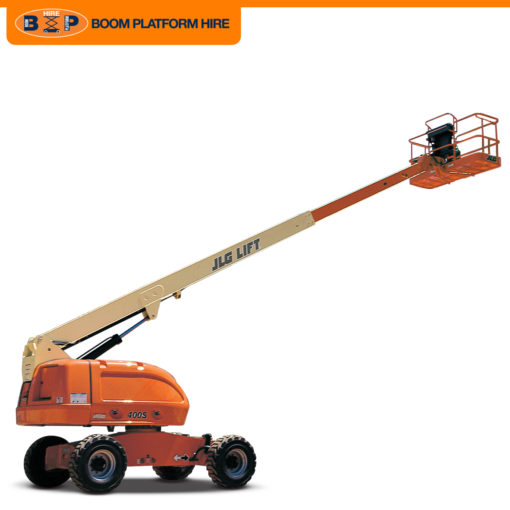

JLG 400S

Key Specs

Horizontal Outreach: 33 ft 3 in. / 10.13 m
Platform Capacity – Restricted: 1000 lb / 453.59 kg
Platform Capacity – Unrestricted: 600 lb / 272.16 kg
Platform Height: 40 ft / 12.19 m

Key Features

Improved multifunction capability increases productivity
More durability and serviceability thanks to the new DuraTough hood design
Larger capacity of 600 lb

Category: Telescopic Diesel Boom Lift

or

Overview
Power Source
Performance
Dimensional Data
General

Improved multifunction capability increases productivity
More durability and serviceability thanks to the new DuraTough hood design
Larger capacity of 600 lb

Auxiliary Power	12 Volts DC
Capacity - Fuel Tank	22 gal. / 83.28 L
Engine Type - Diesel	Deutz D2.9L4 Tier 4 Final 49 hp 36.4 kW
Engine Type - Dual Fuel	GM Vortec 3000 MPFI 82 hp 61 kW

Drive Speed - 4WD	4.50 mph / 7.24 km/h
Gradeability - 4WD	45 %
Platform Capacity - Restricted	1000 lb / 453.59 kg
Platform Capacity - Unrestricted	600 lb / 272.16 kg
Swing	360 Degrees
Swing Type	Continuous
Turning Radius - Outside	15 ft 11 in. / 4.84 m

Ground Clearance	1 ft / 0.31 m
Machine Height	8 ft 1 in. / 2.47 m
Machine Length	24 ft 10 in. / 7.57 m
Machine Length - Transport	24 ft 10 in. / 7.57 m
Machine Width	7 ft 7 in. / 2.31 m
Platform Dimension A	3 ft / 0.91 m
Platform Dimension B	8 ft / 2.44 m
Platform Height	40 ft / 12.19 m
Tire Size	12 x 16.5 Pneumatic Lug Tread Tires

Capacity - Hydraulic Reservoir	36 gal. / 136.27 L
Ground Bearing Pressure	60 psi / 4.20 Kg/cm2
Machine Weight	13425 lb / 6089.48 kg
