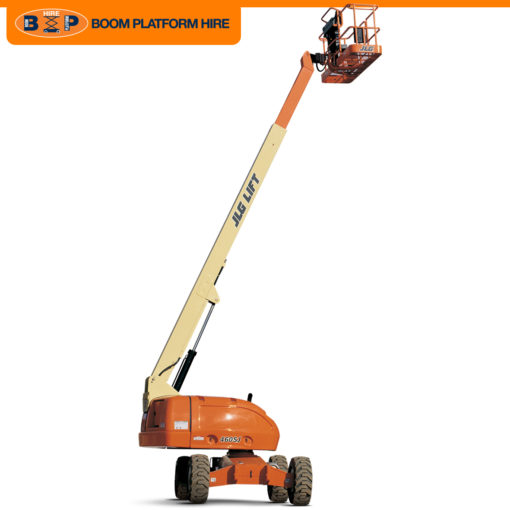

JLG 460SJ

Key Specs

Horizontal Outreach: 39 ft 7 in. / 12.07 m
Platform Capacity – Unrestricted: 600 lb / 272.16 kg
Platform Height: 46 ft / 14.02 m

Key Features

Improved multifunction capability increases productivity
New hood design provides more durability and serviceability
Larger capacity at 600 lb

Category: Telescopic Diesel Boom Lift

or

Overview
Power Source
Performance
Dimensional Data
General

Improved multifunction capability increases productivity
New hood design provides more durability and serviceability
Larger capacity at 600 lb

Auxiliary Power	12 Volts DC
Capacity - Fuel Tank	22 gal. / 83.28 L
Engine Type - Diesel	Deutz D2.9L4 Tier 4 Final 49 hp 36.4 kW
Engine Type - Dual Fuel	GM Vortec 3000 MPFI 82 hp 61 kW

Drive Speed - 4WD	4.50 mph / 7.24 km/h
Gradeability - 4WD	45 %
Platform Capacity - Unrestricted	600 lb / 272.16 kg
Swing	360 Degrees
Swing Type	Continuous
Turning Radius - Outside	15 ft 11 in. / 4.84 m

Ground Clearance	1 ft / 0.31 m
Machine Height	8 ft 1 in. / 2.47 m
Machine Length	29 ft 3 in. / 8.91 m
Machine Length - Transport	29 ft 3 in. / 8.91 m
Machine Width	7 ft 7 in. / 2.31 m
Platform Dimension A	3 ft / 0.91 m
Platform Dimension B	8 ft / 2.44 m
Platform Height	46 ft / 14.02 m
Tire Size	12 x 16.5 Pneumatic Lug Tread Tires

Capacity - Hydraulic Reservoir	36 gal. / 136.27 L
Ground Bearing Pressure	60 psi / 4.20 Kg/cm2
Machine Weight	16370 lb / 7425.31 kg
