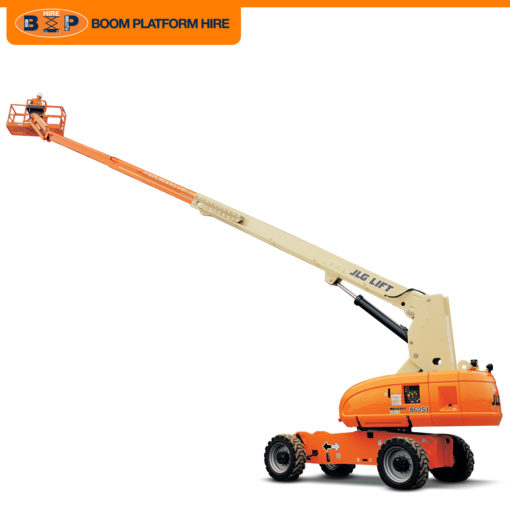

JLG 860SJ

Key Specs

Horizontal Outreach: 75 ft / 22.86 m
Platform Capacity – Restricted: 750 lb / 340.19 kg
Platform Capacity – Unrestricted: 500 lb / 226.80 kg
Platform Height: 86 ft / 26.21 m

Key Features

Reach full elevation in less than 70 seconds
Advanced Design Electronics System reduces your costs by increasing fuel efficiency and reducing emissions
Equipped with a fuel-efficient

Category: Telescopic Diesel Boom Lift

or

Overview
Power Source
Performance
Dimensional Data
General

Reach full elevation in less than 70 seconds
Advanced Design Electronics System reduces your costs by increasing fuel efficiency and reducing emissions
Equipped with a fuel-efficient

Auxiliary Power	12 Volts DC
Capacity - Fuel Tank	31 gal. / 117.35 L
Engine Type - Diesel	DEUTZ TD 2.9L Tier 4 Final 67 hp
Engine Type - Dual Fuel	GM Vortec 3000 MPFI 82 hp (61 kW)

Axle Oscillation	8 in. / 0.2 m
Drive Speed - 2WD	3.50 mph / 5.63 km/h
Drive Speed - 4WD	3.50 mph / 5.63 km/h
Gradeability - 2WD	30 %
Gradeability - 4WD	45 %
Platform Capacity - Restricted	750 lb / 340.19 kg
Platform Capacity - Unrestricted	500 lb / 226.80 kg
Swing	360 Degrees
Swing Type	Continuous
Turning Radius - Outside	22 ft 6 in. / 6.86 m

Ground Clearance	1 ft / 0.3 m
Machine Height	10 ft / 3.05 m
Machine Length	40 ft / 12.19 m
Machine Width	8 ft 2 in. / 2.49 m
Platform Dimension A	3 ft / 0.91 m
Platform Dimension B	8 ft / 2.44 m
Platform Height	86 ft / 26.21 m
Tailswing	4 ft 8 in. / 1.42 m
Tire Size	15-625 Pnuematic

Capacity - Hydraulic Reservoir	48 gal. / 181.70 L
Ground Bearing Pressure	81 psi / 5.67 Kg/cm2
Machine Weight	36400 lb / 16510.76 kg
