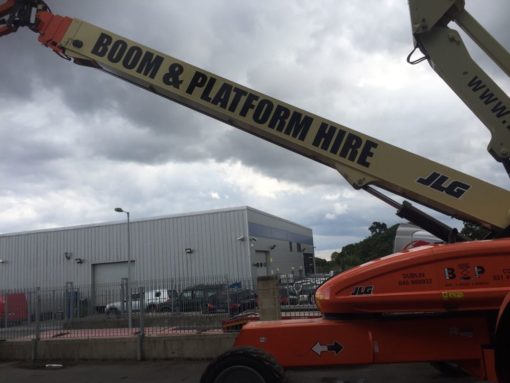

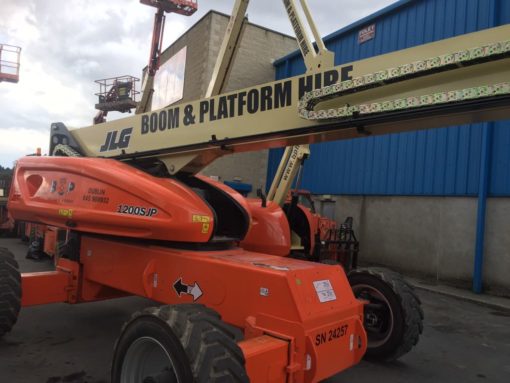

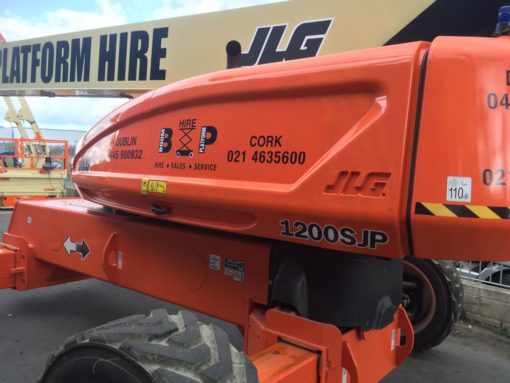

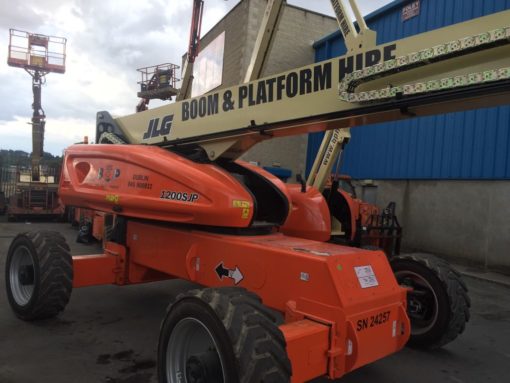

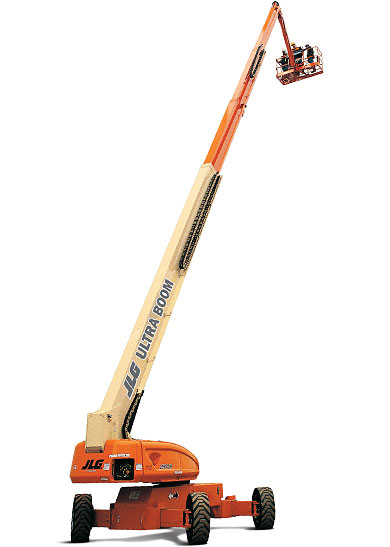

1200SJP Ultra Series Telescopic Boom Lift

Key Specs

Working Height: 38.73 m / 127.1 ft
Working Outreach: 23.51 m / 77.1 ft
Platform Capacity – Restricted: 450 kg / 992.1 lb
Platform Capacity – Unrestricted: 230 kg / 507.1 lb

Key Features

Four wheel drive and four wheel steer plus oscillating axle for superb jobsite mobility
Dual platform capacity with up to 450 kg provides increased versatility and productivity
JibPLUS with side swing jib for enhanced platform positioning

Category: Telescopic Diesel Boom Lift Tags: JLG 1200SJP, JLG Ultra Boom 1200SJG, JLG 1200

or

Overview
Power Source
Performance
Dimensional Data
General

MORE ECONOMIC

Lower hydrocarbon, carbon monoxide, particulate and NOx emissions with Stage IIIB-compliant engine.

MORE PRODUCTIVE

40% gradeability for improved go-anywhere mobility around jobsites.

MORE ACCESS

Dual capacity and class-leading reach in every direction.

SMART DESIGN

Fewer buttons and switches used to position the platform and less time spent learning to use the platform controls.

Key Specs

Working Height: 38.73 m / 127.1 ft
Working Outreach: 23.51 m / 77.1 ft
Platform Capacity - Restricted: 450 kg / 992.1 lb
Platform Capacity - Unrestricted: 230 kg / 507.1 lb

Auxiliary Power	12 Volts DC
Capacity - Fuel Tank	117 L / 30.9 gal.
Engine Type - Diesel (LRC)	Deutz TD2011L4 55.9 kW 74.9 hp

Power Source
• Diesel Engine - Deutz TCD2.9 L4 55.4 kW
• Fuel Tank Capacity 117 L

Hydraulic System
• Hydraulic System 250 L
• Auxiliary Power 12V DC

Tyres
• Tyres 445/50D710 Foam Filled

Axle Oscillation	0.3 m / 1 ft
Drive Speed - 4WD	5.20 km/h / 3.2 mph
Gradeability - 4WD	45 %
Platform Capacity - Restricted	450 kg / 992.1 lb
Platform Capacity - Unrestricted	230 kg / 507.1 lb
Swing	360 Degrees
Swing Type	Continuous
Turning Radius - Outside (axles extended)	5.89 m / 19.3 ft
Turning Radius – Outside (axles retracted)	6.86 m / 22.5 ft
Jib - Range of articulation	130 Degrees

Working Height	38.73 m / 127.1 ft
Working Outreach	23.51 m / 77.1 ft
Horizontal Jib Rotation	180 Degrees
Horizontal Outreach	22.86 m / 75 ft
Platform Height	36.73 m / 120.5 ft

Transport Length	10.64 m / 34.9 ft
Ground Clearance	0.3 m / 1 ft
Machine Height	3.05 m / 10 ft
Machine Length	13.67 m / 44.8 ft
Machine Width	2.49 m / 8.2 ft
Overall Width (Axles Extended)	3.81 m / 12.5 ft
Platform Dimension A	0.91 m / 3 ft
Platform Dimension B	2.44 m / 8 ft
Platform Height	36.73 m / 120.5 ft
Tailswing	1.68 m / 5.5 ft
Tyre size	445/50D710 Foam-Filled

Capacity - Hydraulic Reservoir	250 L / 66 gal.
Maximum Ground Bearing Pressue	7.03 Kg/cm2
Machine Weight (CE & GOST)	18500 kg / 40785.5 lb
