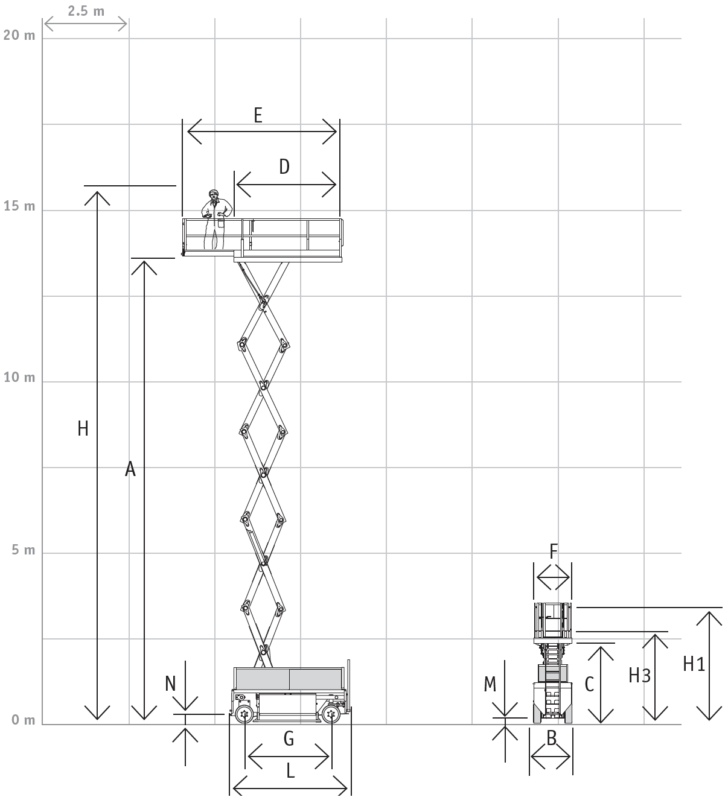

| Indoors/outdoors | indoors |
| H (max.) | ± 21,7 m |
| A (max.) | ± 19,7 m |
| C (min.) | 2,58 m |
| Max LoadLifting capacity | 500 kg (2 pers. + 340 kg) |
| Max LoadLifting capacity ext | 500 kg (2 pers. + 340 kg) |
| Platform DxF (min) | 3,38 x 1,16 m |
| ExF (max) | 4,88 x 1,16 m |
| H1 | 3,74 m |
| H3 | 3,01 m |
| LxB | 3,74 x 1,20 m |
| G | 2,67 m |
| M | 235 mm |
| Speed up/down | ca. 90/85 sec. |
| Tires | 22 x 9 x 16 |
| Slope | ± 25 % |
| Power Source | 500 Ah/k5/48 V |
| Total weight | 9.220 kg |
| Radius***, ø D | 3,92 m |
| Max spd | 2,4 km/h |
| Slw spd (Height dependent) | 0,4 km/h |
| 2WD/4WD 4WDS | 2WD |
| 4WD | no |
| P | no |
| N | no |
| Easylube | incl. |

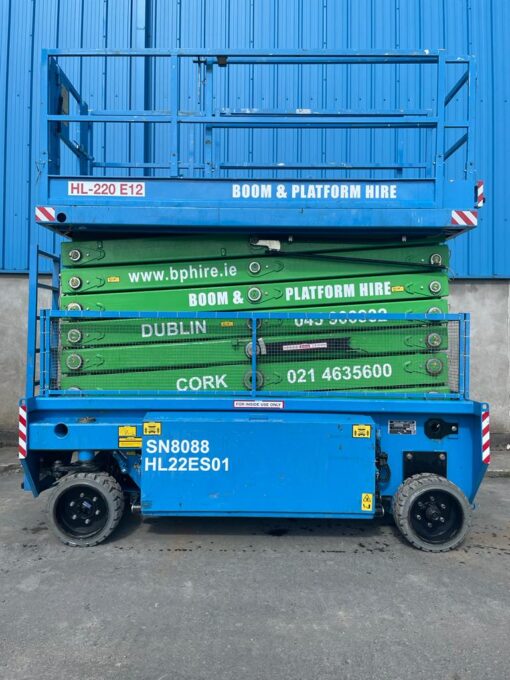

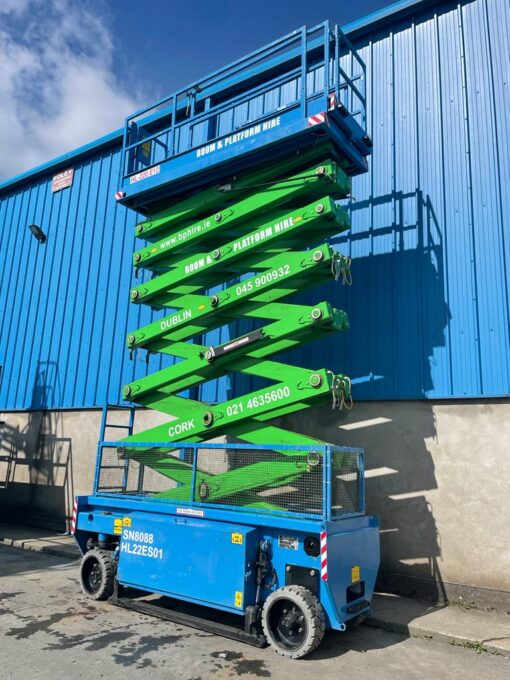

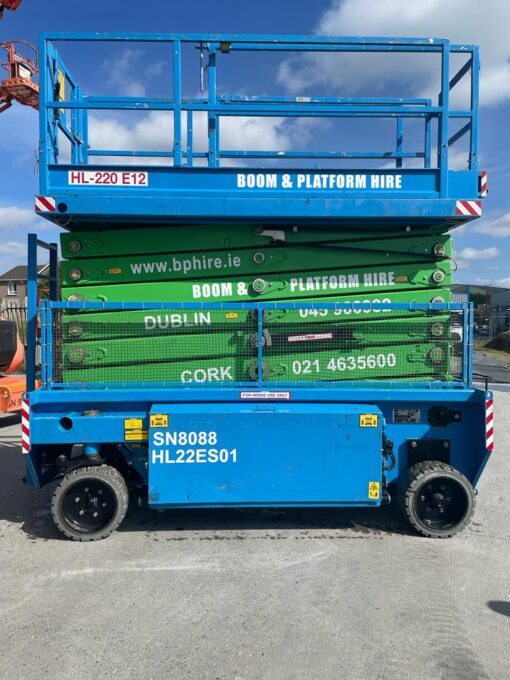

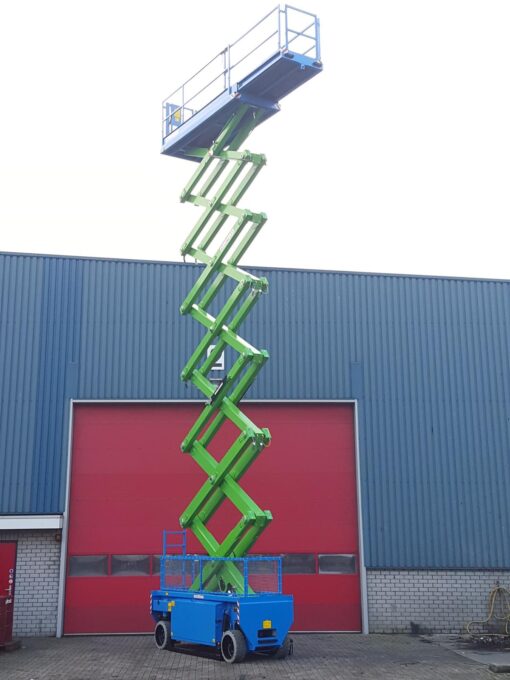

Holland Lift HL 220 12
The Holland Lift HL220 E12 has as working height of 21.70m and is one of the most common 20m electrical scissor lifts available. The extremely robust design ensures a safe and stable environment when working at a full height as well as accompanying a safe working load of 500kg. The 220 E12 has a narrow width of 1.20m, which not only enables operation within difficult spaces, but ease of travel through tight spaces.
Ideal applications
- Narrow or difficult spaces
- Warehouse operations
- Stocktaking
- Mechanical/electrical installation
The Holland Lift HL220 E12 has as working height of 21.70m and is one of the most common 20m electrical scissor lifts available. The extremely robust design ensures a safe and stable environment when working at a full height as well as accompanying a safe working load of 500kg. The 220 E12 has a narrow width of 1.20m, which not only enables operation within difficult spaces, but ease of travel through tight spaces.
Ideal applications
- Narrow or difficult spaces
- Warehouse operations
- Stocktaking
- Mechanical/electrical installation
