| Model | LEO23GT |
| Working height, max. | 23,00 m |
| Side reach, max. | 11,20 m |
| Platform capacity, max. | 200 kg |
| Length with platform | 6,20 m |
| Transport width x height | 0,98 m x 1,97 m |
| Total weight | 2990 kg |
| Tracks, adjustable | Mechanical (Standard), Hydraulical (Option) |
| Stabilisation system | Automatic, multi-position |
| Power source - standard | 230 V electric motor + Diesel |
| Power source - optional | 230 V electric motor + battery |

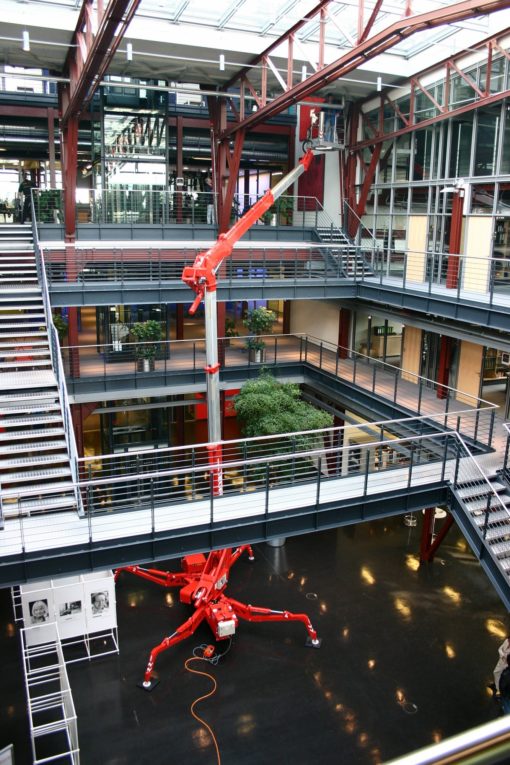

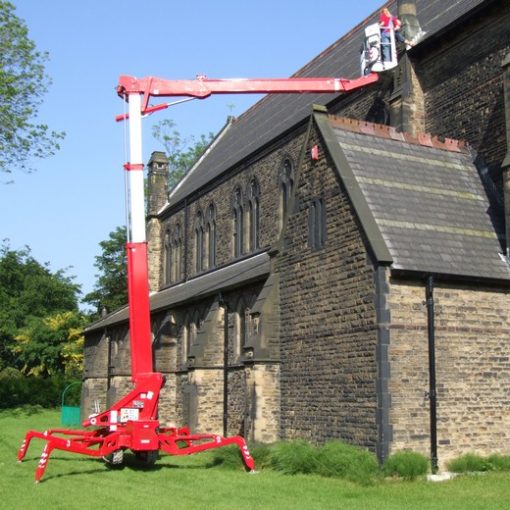

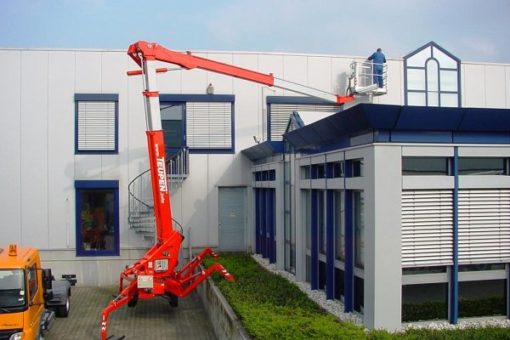

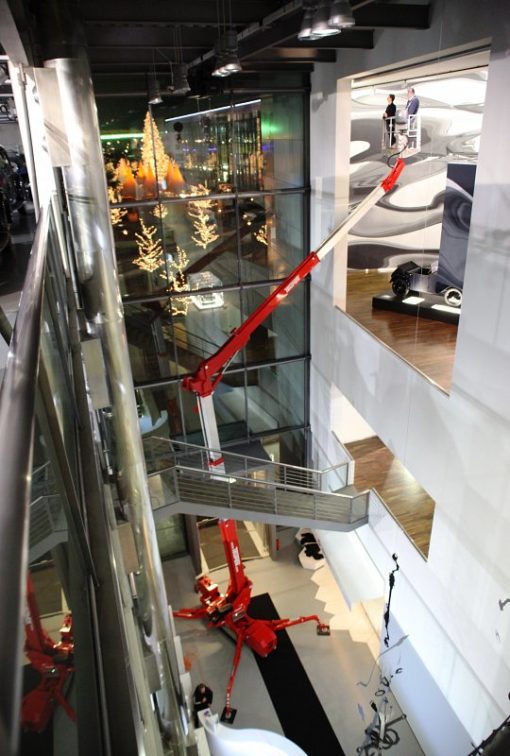

Teupen LEO 23GT
The Teupen Leo 23 GT is suited to supply diverse indoor and outdoor solutions. The Teupen Leo 23 GT has an articulated boom configuration offering exceptional “up and over” clearance. It can be safely driven in rough and uneven terrain. The outrigger setup and the automatic levelling system ensures confidence in operation and safety at height. A diesel engine allows the unit to work outdoors, over very rough terrain, while the electric motor allows fume free, quite operation indoors. Non marking tracks are also an option to ensure that floors are not marked.
This narrow tracked spider lift has excellent rough terrain capabilities due to the caterpillar type tracks. This type of Spider MEWP offers benefits when point loads or ground bearing pressure is an issue. The Teupen Leo 23 GT offers a working height of 23 metres with a maximum outreach 11.20 metres. Available to hire, lease or buy from Hire Safe Solutions.
- Building and factory maintenance
- Finished floors
- Narrow Lightweight Access
- Utilities upgrading
- 240V, 16Amp
- Operates drive and boom functions.
The Leo 23GT is an extremely versatile spider with a 23m working height and the following features:
- Suited for jobsites that provide little space and require great working heights
- Fits through almost every entrance
- Powerful track drive with hydraulic braking system
- Indoor non marking rubber track, with less tread depth the profile enables smooth
- Precise manoeuvring over sensitive electrohydraulic cable remote control
- Self-levelling platform with electro-hydraulic levelling system
