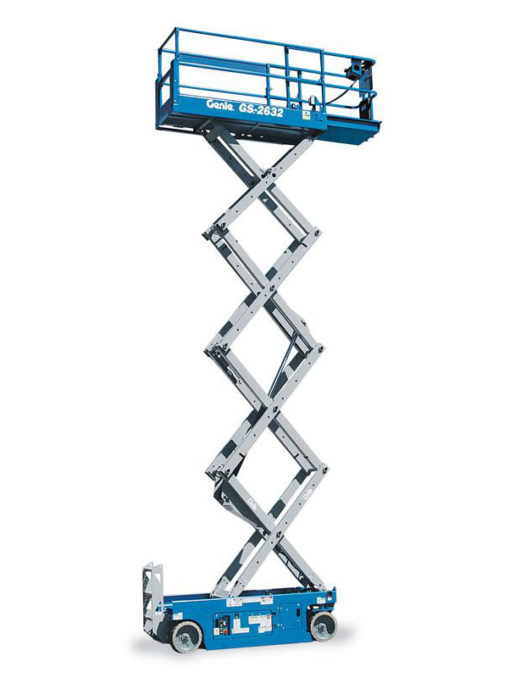

GENIE 2632

Key Specs

Zero-emission electric operation
39 in (1 m) roll-out platform extension
High angle steering for excellent maneuverability
Fixed rail with chain entry gate standard on GS-2032
Folding rails with half-height swing gate standard on GS-2632
Universal 20 amp smart charger
Proportional controls for lift and drive functions
On-board diagnostics for easy troubleshooting
Multiple disc brakes provide smooth deceleration
Emergency stop at both platform and ground controls
Solid, non-marking tires
AC power to platform

Categories: Genie Range, Specialist Units Tag: GENIE 2632

or

Power Source

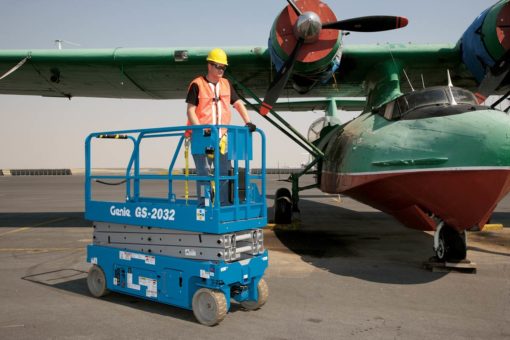

GS-2032
Working Height*	26 ft (8.10 m)
Width	2 ft 8 in (0.81 m)
Outside Turning Radius	7 ft (2.13 m)
Lift Capacity	800 lbs (363 kg)
Gradeability**	30%

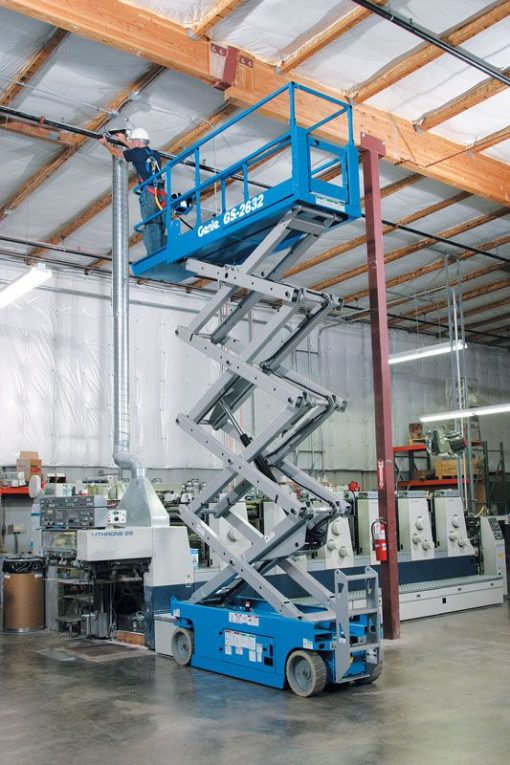

GS-2632
Working Height*	32 ft (9.92 m)
Width	2 ft 8 in (0.81 m)
Outside Turning Radius	7 ft (2.13 m)
Lift Capacity	500 lbs (227 kg)
Gradeability**	25%
