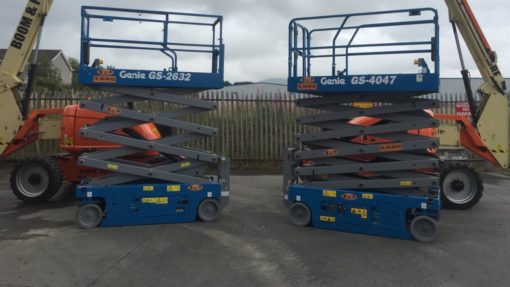

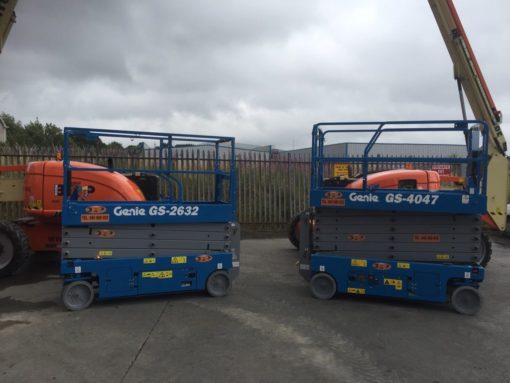

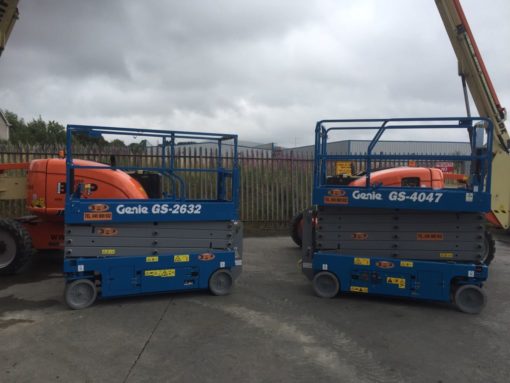

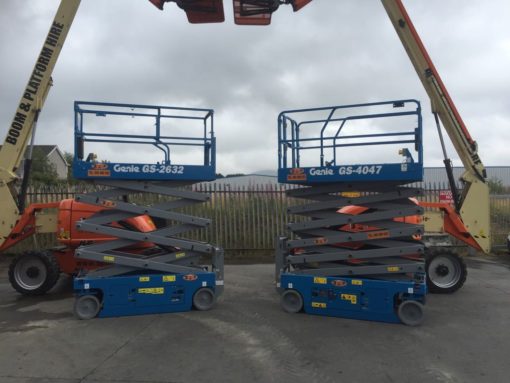

Genie® GS™- 4047

Power source 24 V DC, 300 Ah (four 12 V, 150 Ah batteries
in parallel series)
Hydraulic system capacity 7.5 gal 28.4 L

Features
Productivity Options
• Air line to platform
• Dual flashing LED beacons
• Automotive-style horn
Measurements
GS-4047
• 45 ft (13.89 m) working height
• Up to 550 lbs (249 kg) lift capacity
Productivity
• Drive at full height
• Folding rails with full height
swing gate
• Smart Link™ - proportional lift and drive
• Platform control with battery
charge indicator
• AC power to platform
• Lanyard attachment points
• Manual platform lowering valve
• Emergency stop at both platform and
ground controls
• Rear wheel multiple disc brakes
• Front wheel hydraulic dynamic braking
• Manual hydraulic brake release
• Swing-out component trays
• Pothole guards
• Tilt level sensor with audible alarm
• Descent alarm
• Electronic horn
• Hour meter
• Motion alarm
Power
• 24 V DC, 300 Ah (four 12 V 150 Ah
batteries in parallel series)
• Universal 20 amp smart charger
Platform
• 7 ft 5 in x 3 ft 9.3 in (2.26 x 1.15 m) steel
platform
• 3 ft 9.3 in (0.91 m) extension deck
Drive
• Dual front wheel hydraulic drive
Tires
• Solid non-marking

Max platform occupancy 2
Lift capacity 550 lbs 249 kg
Lift capacity - extension deck 250 lbs 113 kg
Drive height Full height
Drive speed - stowed 2.0 mph 3.2 km/h
Drive speed - raised 0.5 mph 0.8 km/h
Gradeability - stowed** 25%
Turning radius - inside zero
Turning radius - outside 7 ft 7 in 2.31 m
Raise/lower speed 71/41 sec
Controls proportional
Drive dual front wheel
Multiple disc brakes dual rear wheel
Tires solid non-marking 15 x 5 in 38 x 13 cm
Power
Power source 24 V DC, 300 Ah (four 12 V, 150 Ah batteries
in parallel series)
Hydraulic system capacity 7.5 gal 28.4 L
Weight***
Base machine (ANSI/CSA) 7,185 lbs 3,260 kg
Standards Compliance ANSI A92.6, CSA B354.2, CE Compliance, AS 1418.10
