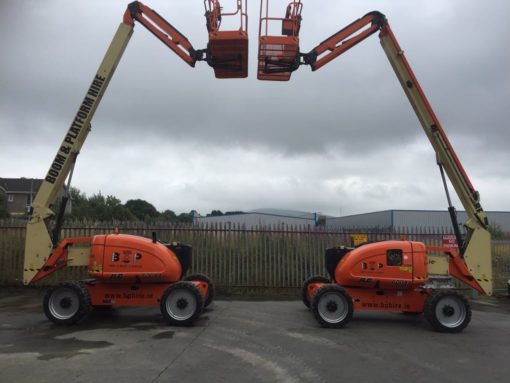

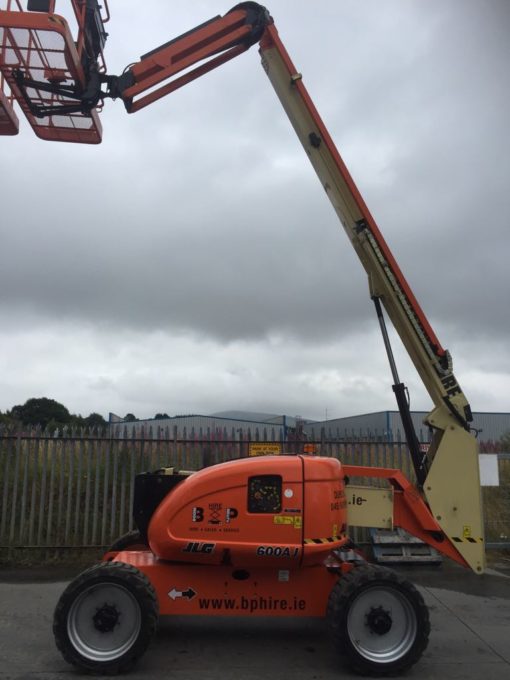

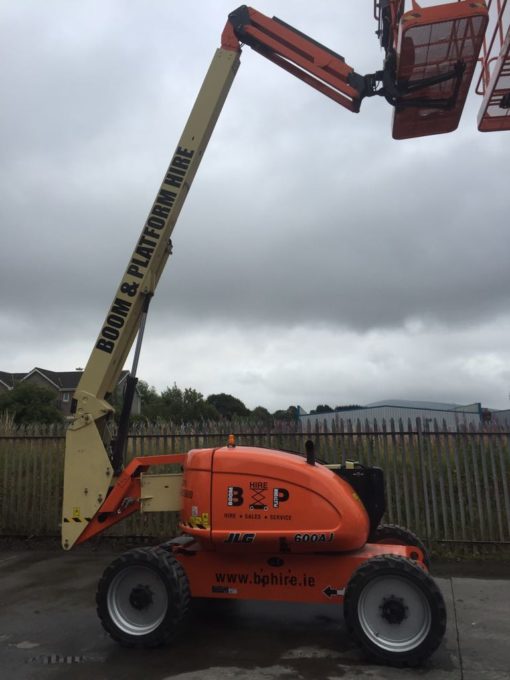

The 600 Series features a narrow chassis option for access to confined areas and the industry’s best work envelope. A standard oscillating axle and optional four-wheel drive give you outstanding drive performance on rough terrain. Jib-equipped models add 70 degrees of upward and 60 degrees of downward motion to get you into those hard-to-reach places.
| Auxiliary Power | 12 Volts DC |
| Capacity - Fuel Tank | 114 L / 30.1 gal. |
| Engine Type - Diesel (LRC) | Deutz D2011L04 36.4 KW (49 Hp) |
| Axle Oscillation | 0.2 m / 8 in. |
| Drive Speed - 2WD | 6.80 km/h / 4.2 mph |
| Drive Speed - 4WD | 6.80 km/h / 4.2 mph |
| Gradeability - 2WD | 30 % |
| Gradeability - 4WD | 45 % |
| Platform Capacity - Unrestricted | 230 kg / 507.1 lb |
| Swing | 360 Degrees |
| Swing Type | Continuous |
| Turning Radius - Outside (2WS) | 5.36 m / 17.6 ft |
| Turning Radius - Outside (4WS) | 3.56 m / 11.7 ft |
| Jib - Range of articulation | 130 Degrees |
| Ground Clearance | 0.3 m / 1 ft |
| Machine Height | 2.57 m / 8.4 ft |
| Machine Length | 8.82 m / 28.9 ft |
| Machine Width | 2.49 m / 8.2 ft |
| Platform Dimension A | 0.91 m / 3 ft |
| Platform Dimension B | 2.44 m / 8 ft |
| Platform Height | 18.46 m / 60.6 ft |
| Tailswing | 0 m / 0 in. |
| Tyre size | IN 355/55 D625 Foam Filled |
| Working Height | 20.46 m / 67.1 ft |
| Working Outreach | 12.75 m / 41.8 ft |
| Horizontal Jib Rotation | 0 Degrees |
| Horizontal Outreach | 12.10 m / 39.7 ft |
| Platform Height | 18.46 m / 60.6 ft |
| Up and Over Height | 8.09 m / 26.5 ft |
| Capacity - Hydraulic Reservoir | 151 L / 39.9 gal. |
| Maximum Ground Bearing Pressue | 5.30 Kg/cm2 |
| Machine Weight (CE & GOST) | 10660 kg / 23501.3 lb |
