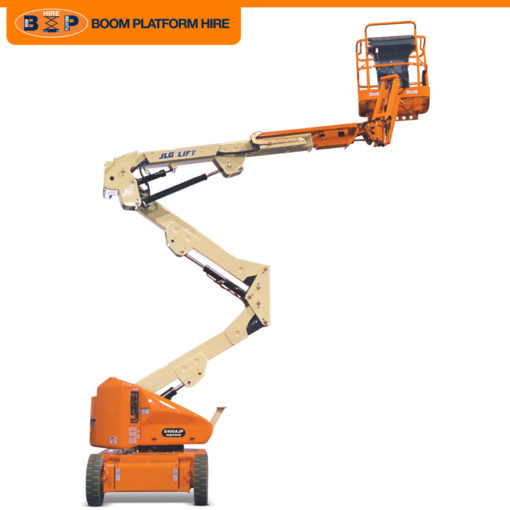

JLG E400AJP

Key Specs

Machine Width: 5 ft 9 in. / 1.75 m
Platform Capacity: 500 lb / 226.80 kg
Platform Height: 40 ft / 12.19 m

Key Features

Accessibility – up and over access, optional jib
Maneuverability – move over uneven surfaces with Automatic Traction Control
Productivity – work longer with longer duty cycles
Environmentally friendly – zero emissions

Category: Electric Boom Lift Tag: JLG E400AJP

or

Overview
Power Source
Performance
Dimensional Data
General

Accessibility – up and over access, optional jib
Maneuverability – move over uneven surfaces with Automatic Traction Control
Productivity – work longer with longer duty cycles
Environmentally friendly – zero emissions

Batteries	8 x 6V, 370 amp-hr
Electrical System	48 Volts DC

Drive Speed - Platform Lowered	3.20 mph / 5.15 km/h
Gradeability - 2WD	30 %
Platform Capacity	500 lb / 226.80 kg
Platform Capacity - Unrestricted	500 lb / 226.80 kg
Swing	360 Degrees
Swing Type	Non-Continuous
Turning Radius - Outside	10 ft 4 in. / 3.15 m

Ground Clearance	9 in. / 0.22 m
Machine Height	6 ft 7 in. / 2.01 m
Machine Length	22 ft / 6.71 m
Machine Width	5 ft 9 in. / 1.75 m
Platform Dimension A	2 ft 6 in. / 0.76 m
Platform Dimension B	5 ft / 1.52 m
Platform Height	40 ft / 12.19 m
Tailswing	Zero
Tire Size	240/55-17.5 Pnuematic
Wheelbase	6 ft 7 in. / 2.01 m

Capacity - Hydraulic Reservoir	4 gal. / 15.14 L
Machine Weight	13700 lb / 6214.22 kg
