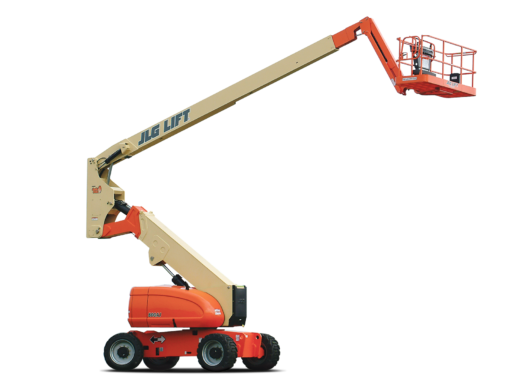

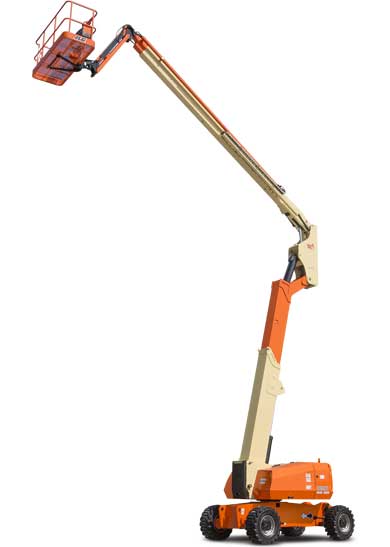

JLG 800AJ

Key Specs

Horizontal Outreach: 51 ft 10 in. / 15.8 m
Platform Capacity – Unrestricted: 500 lb / 226.80 kg
Platform Height: 80 ft / 24.38 m

Key Features

Get the extra reach and versatility you need with the best reach envelope in the industry
With Workstation in the Sky accessories, you will have all you need to get the job done
Advanced Design Electronics System reduces your costs by increasing your fuel efficiency and reducing emissions

Category: Articulated Diesel Boom Lift

or

Overview
Power Source
Performance
Dimensional Data
General

Get the extra reach and versatility you need with the best reach envelope in the industry
With Workstation in the Skyä accessories, you will have all you need to get the job done
Advanced Design Electronics System reduces your costs by increasing your fuel efficiency and reducing emissions

Auxiliary Power	12 Volts DC
Capacity - Fuel Tank	39 gal. / 147.63 L
Engine Type - Diesel	DEUTZ TD 2.9L Tier 4 Final 67 hp
Engine Type - Dual Fuel	GM Vortec 3000 MPR, 82 hp

Axle Oscillation	0 in. / 0 mm
Drive Speed - 2WD	3 mph / 4.83 km/h
Drive Speed - 4WD	3 mph / 4.83 km/h
Gradeability - 2WD	30 %
Gradeability - 4WD	45 %
Platform Capacity - Unrestricted	500 lb / 226.80 kg
Swing	360 Degrees
Swing Type	Continuous
Turning Radius - Outside (2WS)	22 ft 6 in. / 6.86 m
Turning Radius - Outside (4WS)	14 ft 6 in. / 4.42 m

Ground Clearance	1 ft / 0.3 m
Machine Height	9 ft 10 in. / 3 m
Machine Length	36 ft 6 in. / 11.13 m
Machine Width	8 ft 2 in. / 2.49 m
Platform Dimension A	3 ft / 0.91 m
Platform Dimension B	8 ft / 2.44 m
Platform Height	80 ft / 24.38 m
Tailswing	2 ft 6 in. / 0.76 m
Tire Size	18 x 19.5 Wide Lug Tread

Capacity - Hydraulic Reservoir	40 gal. / 151.42 L
Ground Bearing Pressure	76 psi / 5.32 Kg/cm2
Machine Weight	34300 lb / 15558.22 kg
