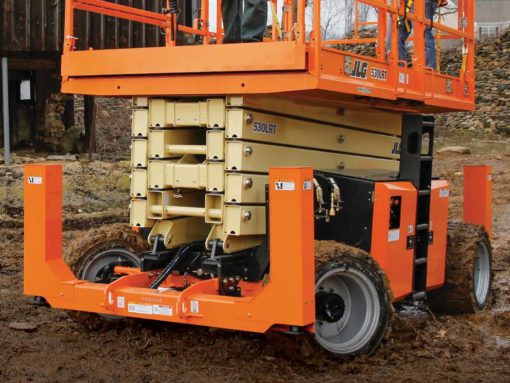

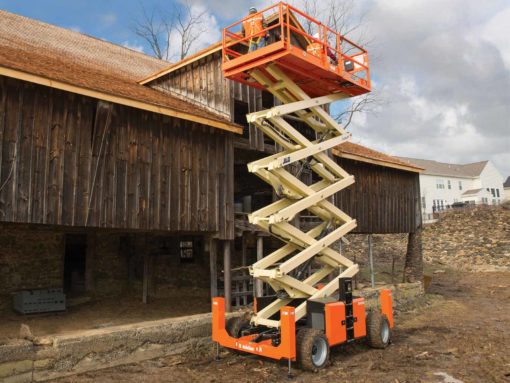

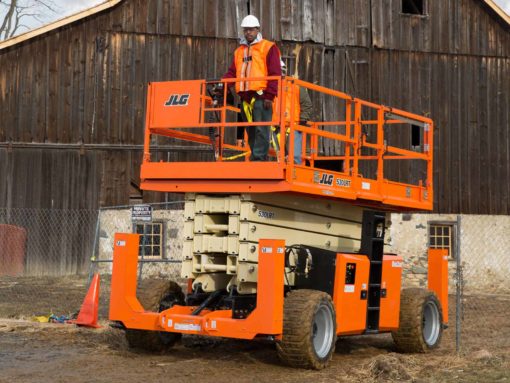

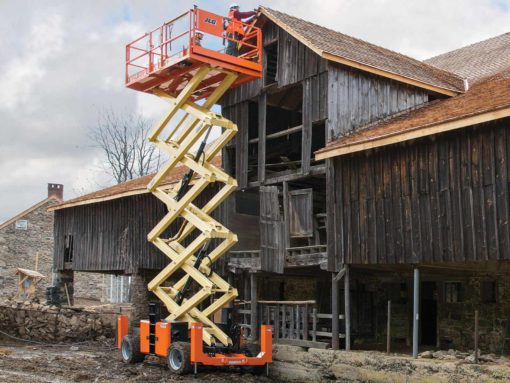

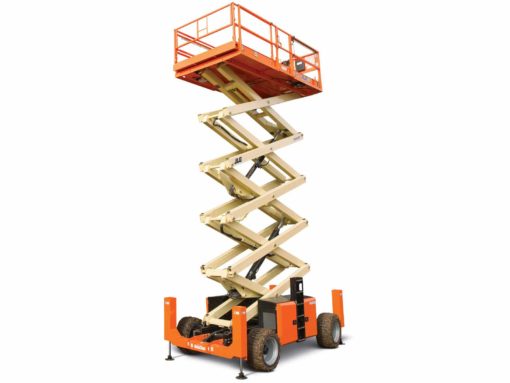

JLG 530LRT

Key Specs

Working Height: 18.15 m / 59.5 ft
Platform Capacity: 680 kg / 1499.1 lb

Key Features

Optimised power train for fuel efficiency.
Standard oscillating axle offering superior terrainability when traveling uneven surfaces.
An optional MegaDeck increasing the operator work area to 7.2m.
Spacious deck with standard 1.14m deck extension providing more working space for people and materials.
Stronger, thicker steel provides added stability which enhances operator confidence while working on the platform.

Category: JLG Range

or

Overview
Power Source
Performance
Dimensional Data
General

Key Features

Optimised power train for fuel efficiency.
Standard oscillating axle offering superior terrainability when traveling uneven surfaces.
An optional MegaDeck increasing the operator work area to 7.2m.
Spacious deck with standard 1.14m deck extension providing more working space for people and materials.
Stronger, thicker steel provides added stability which enhances operator confidence while working on the platform.

General Specification

Capacity - Hydraulic Reservoir	121.42 L / 32.1 gal.
Machine Weight (ANSI Export & CSA)	7711 kg / 16999.8 lb
Machine Weight (CE & GOST)	7995 kg / 17626 lb
Oscillating Axle - 4x4	Standard / Standard

Reach Specification

Platform Height	16.20 m / 53.1 ft
Working Height	18.15 m / 59.5 ft

Batteries	NA
Capacity - Fuel Tank	83.30 L / 22 gal.
Engine Type - Diesel	Kubota D1305 30 hp 22.4 kW
Engine Type - Dual Fuel	Kubota WG972 31 23 kW

Drive Speed - Platform Elevated	0.80 km/h / 0.5 mph
Drive Speed - Platform Lowered	5.60 km/h / 3.5 mph
Gradeability	40 %
Lift Time	65 sec.
Lower Time	60 sec.
Maximum Drive Height	9.14 m / 30 ft
Platform Capacity	680 kg / 1499.1 lb
Platform Capacity - Extension	230 kg / 507.1 lb
Turning Radius - Inside	4.04 m / 13.3 ft
Turning Radius - Outside	6.02 m / 19.8 ft

Ground Clearance	0.3 m / 1 ft
Machine Height	3.07 m / 10.1 ft
Machine Height - Rails Folded	2.36 m / 7.7 ft
Machine Length	4.88 m / 16 ft
Machine Width	2.31 m / 7.6 ft
Platform Dimension A	1.81 m / 5.9 ft
Platform Dimension B	3.96 m / 13 ft
Platform Extension Length	1.14 m / 3.7 ft
Platform Height	16.20 m / 53.1 ft
Platform Height - Lowered	2.13 m / 7 ft
Platform Railing Height	0.94 m / 3.1 ft
Tire Size (ANSI EXPORT & CSA)	12 x 16.5 FF
Tyre Size	12 x 16.5 FF
Tyre size	12 x 16.5 FF
Wheelbase	2.97 m / 9.7 ft

Capacity - Hydraulic Reservoir	32 gal. / 121.13 L
Machine Weight	15300 lb / 6939.96 kg
