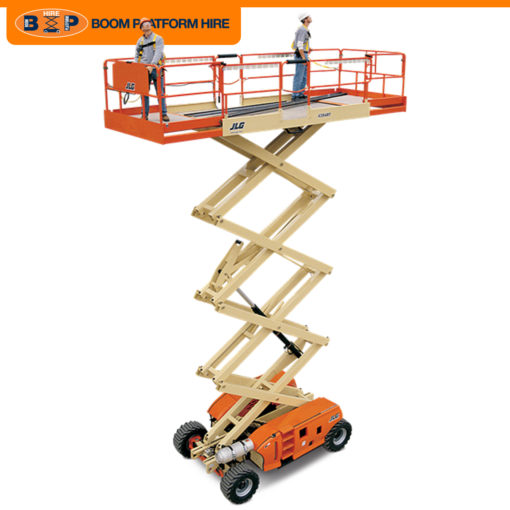

JLG 4394RT

Key Specs

Machine Width: 7 ft 10 in. / 2.39 m
Platform Capacity: 1500 lb / 680.39 kg
Platform Height: 43 ft / 13.11 m

Key Features

Larger platform and increased lift capacity
Optional one-touch leveling jacks for quicker setup
Maximum lift and lower time of 43 seconds gives you more time to get your work done
New twin-pump-powered 4WD for a higher level of performance over rough terrain
Equipped with a fuel-efficient

Category: JLG Range

or

Overview
Power Source
Performance
Dimensional Data
General

Larger platform and increased lift capacity
Optional one-touch leveling jacks for quicker setup
Maximum lift and lower time of 43 seconds gives you more time to get your work done
New twin-pump-powered 4WD for a higher level of performance over rough terrain
Equipped with a fuel-efficient

Capacity - Fuel Tank	30 gal. / 113.56 L
Engine Type - Diesel	DEUTZ T4F D2.9L4 48.8 hp
Engine Type - Dual Fuel	GM Vortec 3000 MPR 82hp

Drive Speed - Platform Elevated	0.50 mph / 0.80 km/h
Drive Speed - Platform Lowered	4 mph / 6.44 km/h
Gradeability	45 %
Lift Time	40 sec.
Lower Time	43 sec.
Maximum Drive Height	43 ft / 13.11 m
Maximum Lift Height	43 ft / 13.11 m
Platform Capacity	1500 lb / 680.39 kg
Platform Capacity - Extension	500 lb / 226.80 kg
Turning Radius - Outside	19 ft 6 in. / 5.93 m

Ground Clearance	1 ft / 0.3 m
Machine Height	9 ft 6 in. / 2.89 m
Machine Height - Rails Folded	7 ft 2 in. / 2.19 m
Machine Length	12 ft 8 in. / 3.86 m
Machine Width	7 ft 10 in. / 2.39 m
Platform Dimension A	12 ft 6 in. / 3.81 m
Platform Dimension B	7 ft 2 in. / 2.18 m
Platform Extension Length	4 ft / 1.22 m
Platform Height	43 ft / 13.11 m
Platform Height - Lowered	5 ft 10 in. / 1.79 m
Platform Railing Height	3 ft 8 in. / 1.1 m
Tire Size	33 x 15.5 Superwide
Wheelbase	9 ft 8 in. / 2.95 m

Capacity - Hydraulic Reservoir	32 gal. / 121.13 L
Machine Weight	15300 lb / 6939.96 kg
