| Rigid | ||
| 4,000kg / 8,800Lbs | ||
| 16,650mm / 656Inch |

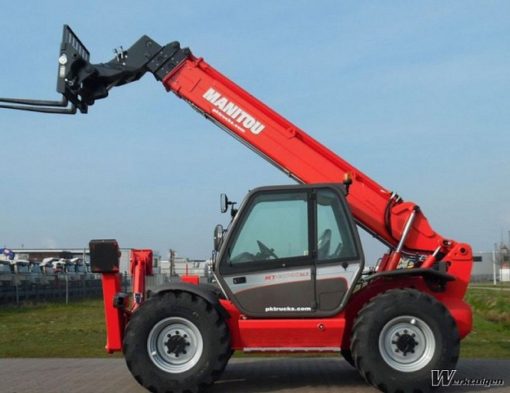

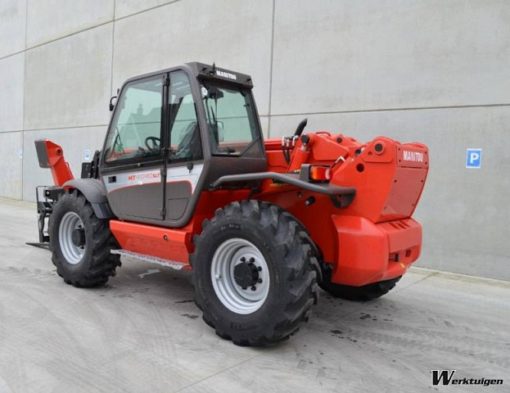

Manitou 1740SLT
Manitou MT-X 1740 SLT (Load Sensing turbo) telescopic handlers has a 4,000 kg lift capacity. This four wheel drive telescopic handlers uses a 4.4 liter 4 cylinder Perkins 1104D 44TA turbodiesel engine 101 hp. Standard transmission is a 27 km / h transmission with four forward and four reverse gears. The telescopic mast of the MT-X1740 SL Turbo can be extended to 12.35 meters to a loading height height of 16.65 meters is achievable. Transport width of this Manitou telescopic handlers measured on standard 440 / 80-24 tires is 2450 mm and operating weight of 11.4 tonnes.
| Lift height: | ||
| 16,650mm / 656Inch | ||
| 12,000mm / 472Inch | ||
| Reach forward: | ||
| 12,350mm / 486Inch | ||
| 4,500mm / 177Inch | ||
| Lifting capacity: | ||
| On stabilissers: | ||
| 4,000kg / 8,800Lbs | ||
| 2,500kg / 5,500Lbs | ||
| 700kg / 1,540Lbs | ||
| 70.00kN / 7,000.00daN | ||
| Drawbar pull: | ||
| 97.00kN / 9,700.00daN | ||
Weight: |
||
| Operating weight: | ||
| 11,362kg / 24,996Lbs | ||
| 11,362kg / 24,996Lbs | ||
| Transport dimensions: | ||
| 5,980mm / 235Inch | ||
| 2,450mm / 96Inch | ||
| 2,610mm / 103Inch | ||
| Length dimensions: | ||
| 5,980mm / 235Inch | ||
| Height dimensions: | ||
| Cabine: | ||
| 2,610mm / 103Inch | ||
| Ground clearance: | ||
| 480mm / 19Inch | ||
| Undercarriage: | ||
| 2 | ||
| Wheels & tyres: | ||
| Tire size: | ||
| 440/80 R24 | ||
| Wheelbase: | ||
| 2,770.00mm / 109.06Inch | ||
| Wielspoor: | ||
| 1,990mm / 78Inch | ||
| Width over tires: | ||
| 2,450mm / 96Inch | ||
| Steering: | ||
| Front/Crab/All wheel | ||
| Hydrostatic | ||
| Turning radius: | ||
| 4,180mm / 165Inch | ||
| Standard Forks: | ||
| 1,200mm / 47Inch | ||
| 125mm / 5Inch | ||
| 50mm / 2Inch | ||
| 500mm / 20Inch | ||
Manitou MT-X 1740 SLT (Load Sensing turbo) telescopic handlers has a 4,000 kg lift capacity. This four wheel drive telescopic handlers uses a 4.4 liter 4 cylinder Perkins 1104D 44TA turbodiesel engine 101 hp. Standard transmission is a 27 km / h transmission with four forward and four reverse gears. The telescopic mast of the MT-X1740 SL Turbo can be extended to 12.35 meters to a loading height height of 16.65 meters is achievable. Transport width of this Manitou telescopic handlers measured on standard 440 / 80-24 tires is 2450 mm and operating weight of 11.4 tonnes.
