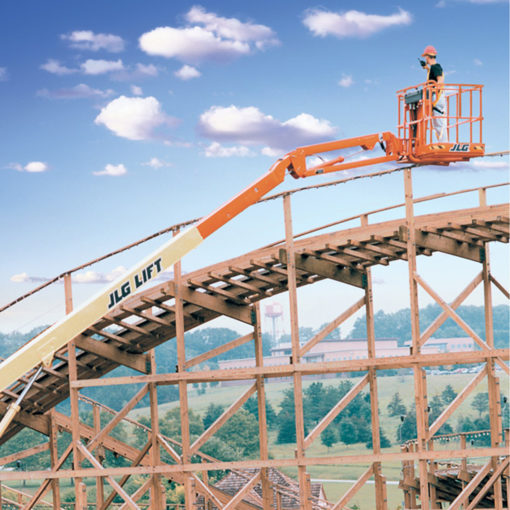

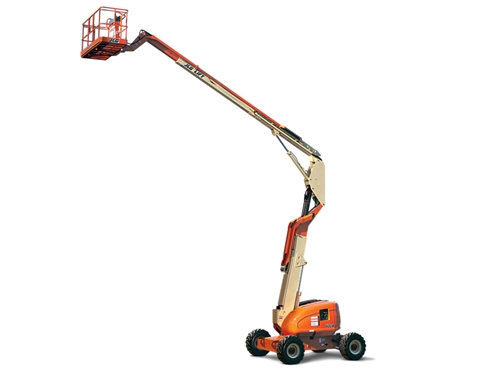

JLG 600AJ

<h4″>Key Specs

Horizontal Outreach: 39 ft 9 in. / 12.12 m
Platform Capacity – Unrestricted: 500 lb / 226.80 kg
Platform Height: 60 ft 7 in. / 18.47 m

Key Features

Best reach envelope in its class
Optional articulating jib gets you into hard-to-reach places
Unmatched maneuverability for confined work areas
Equipped with a fuel-efficient

Add to Wishlist

Category: Articulated Diesel Boom Lift

Overview
Power Source
Performance
Dimensional Data
General
Additional information

Best reach envelope in its class
Optional articulating jib gets you into hard-to-reach places
Unmatched maneuverability for confined work areas
Equipped with a fuel-efficient

Auxiliary Power	12 Volts DC
Capacity - Fuel Tank	30 gal. / 113.56 L
Engine Type - Diesel	DEUTZ TD 2.9L Tier 4 Final 67 hp
Engine Type - Dual Fuel	GM Vortec 3000 MPR, 82 hp

Ground Clearance	1 ft / 0.29 m
Machine Height	8 ft 4 in. / 2.54 m
Machine Length	29 ft / 8.84 m
Machine Width	8 ft 2 in. / 2.49 m
Platform Dimension A	3 ft / 0.91 m
Platform Dimension B	8 ft / 2.44 m
Platform Height	60 ft 7 in. / 18.47 m
Tailswing	Zero
Tire Size	IN355/55D-6.25 Low Profile

Horizontal Jib Rotation	0 Degrees
Horizontal Outreach	39 ft 9 in. / 12.12 m
Platform Height	60 ft 7 in. / 18.47 m
Up and Over Height	26 ft 7 in. / 8.1 m
Vertical Jib Rotation	130 Degrees

Capacity - Hydraulic Reservoir	31 gal. / 115.83 L
Ground Bearing Pressure	75 psi / 5.25 Kg/cm2
Machine Weight	22740 lb / 10314.69 kg

Height	18.29
Power	Diesel
