| Engine | ||
| Make | Perkins | |
| Model | Diesel 1104.44 | |
| Gross Power | 80.5 hp | 60 kw |
| Operational | ||
| Operating Weight | 22046.2 lb | 10000 kg |
| Fuel Capacity | 37 gal | 140 L |
| Hydraulic System Fluid Capacity | 42.3 gal | 160 L |
| Tire Size | 405/70-24 | |
| Transmission | ||
| Type | powershift | |
| Number of Forward Gears | 3 | |
| Number of Reverse Gears | 3 | |
| Max Speed - forward | 15.5 mph | 25 km/h |
| Max Speed - reverse | 15.5 mph | 25 km/h |
| Hydraulic | ||
| Pump Type | load sensing piston | |
| Pump Flow Capacity | 34.9 gal/min | 132 L/min |
| Lift | ||
| Max Lift Capacity | 7716.2 lb | 3500 kg |
| Max Lift Height | 37.7 ft in | 11500 mm |
| Max Load at Max Height | 7716.2 lb | 3500 kg |
| Max Forward Reach | 25.9 ft in | 7900 mm |
| Max Load at Max Reach | 2204.6 lb | 1000 kg |
| Dimensions | ||
| Length to Fork Face | 15.1 ft in | 4600 mm |
| Width Over Tires | 7.8 ft in | 2380 mm |
| Overall Height | 8 ft in | 2450 mm |
| Wheelbase | 9.4 ft in | 2850 mm |
| Ground Clearance | 16.5 ft in | 420 mm |
| Turning Radius Outside Tires | 12.5 ft in | 3800 mm |

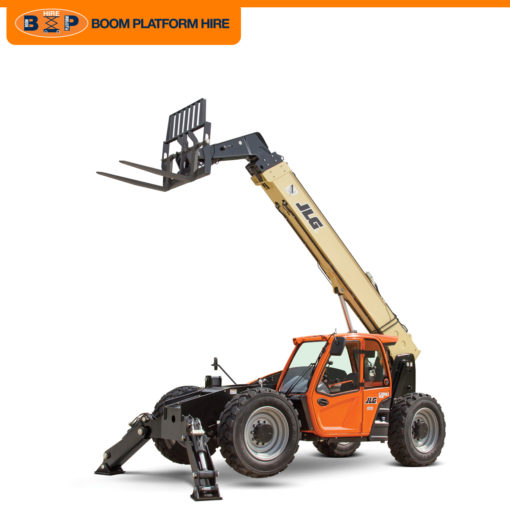

JLG 3512PS
| Engine | ||
| Make | Perkins | |
| Model | Diesel 1104.44 | |
| Gross Power | 80.5 hp | 60 kw |
| Operational | ||
| Operating Weight | 22046.2 lb | 10000 kg |
| Fuel Capacity | 37 gal | 140 L |
| Hydraulic System Fluid Capacity | 42.3 gal | 160 L |
| Tire Size | 405/70-24 | |
| Transmission | ||
| Type | powershift | |
| Number of Forward Gears | 3 | |
| Number of Reverse Gears | 3 | |
| Max Speed – forward | 15.5 mph | 25 km/h |
| Max Speed – reverse | 15.5 mph | 25 km/h |
| Hydraulic | ||
| Pump Type | load sensing piston | |
| Pump Flow Capacity | 34.9 gal/min | 132 L/min |
| Lift | ||
| Max Lift Capacity | 7716.2 lb | 3500 kg |
| Max Lift Height | 37.7 ft in | 11500 mm |
| Max Load at Max Height | 7716.2 lb | 3500 kg |
| Max Forward Reach | 25.9 ft in | 7900 mm |
| Max Load at Max Reach | 2204.6 lb | 1000 kg |
| Dimensions | ||
| Length to Fork Face | 15.1 ft in | 4600 mm |
| Width Over Tires | 7.8 ft in | 2380 mm |
| Overall Height | 8 ft in | 2450 mm |
| Wheelbase | 9.4 ft in | 2850 mm |
| Ground Clearance | 16.5 ft in | 420 mm |
| Turning Radius Outside Tires | 12.5 ft in | 3800 mm |
| Make and Model | Deutz TCD 3.6 L4 |
| No. of Cylinders | 4 |
| Standard engine gross power | 74.4kW |
| Maximum torque at 1600 RPM | 420Nm |
| Fuel Tank Capacity | 150 L |
| Rated capacity | 4,000 kg |
| Rated capacity | 4,000 kg |
| Maximum lift height (stabilisers up) | 15.2 m |
| Capacity at max height (stabilisers up) | 1000 kg |
| Maximum lift height (stabilisers down) | 17.3 m |
| Capacity at max. reach (stabilisers down) | 500 kg |
| Frame leveling | 10° |
| Lift speed (boom retracted) | Up 16.0 sec |
| Extended | 20 sec |
| Retracted | 25 sec |
| Extended | 20 sec |
| Top travel speed | 32.0 km/h |
| Engine | 74.4kW 4 speed |
| Drawbar pull (loaded) | 69.3kN |
| Outside turning radius (over tyres) | 3.92 m |
| Operating weight | 12310 kg |
|
Dimensions
|
||
| A. Length to Fork Face | 15.1 ft in | 4600 mm |
| B. Width Over Tires | 7.8 ft in | 2380 mm |
| C. Overall Height | 8 ft in | 2450 mm |
| D. Wheelbase | 9.4 ft in | 2850 mm |
| E. Ground Clearance | 16.5 ft in | 420 mm |
|
Lift
|
||
| F. Max Lift Height | 37.7 ft in | 11500 mm |
| G. Max Forward Reach | 25.9 ft in | 7900 mm |
