- Narrow 69 in chassis fits into spaces other scissor lifts can't
- Large work platform and 1,250 lb platform capacity so you can be more productive
- Standard four wheel drive and 35 percent gradeability keep you going

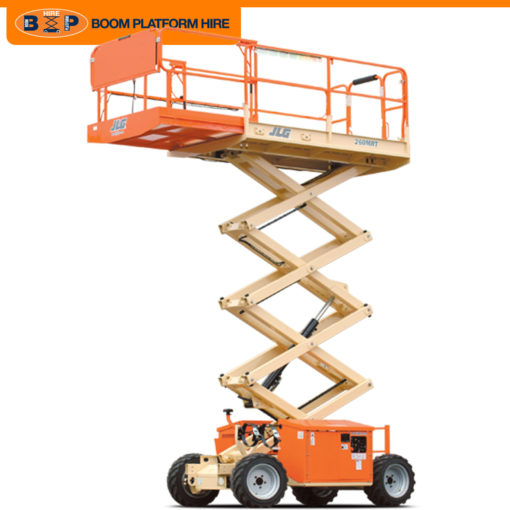

JLG 260MRT
Key Specs
- Machine Width: 5 ft 9 in. / 1.75 m
- Platform Capacity: 1250 lb / 566.99 kg
- Platform Height: 26 ft / 7.92 m
Key Features
- Narrow 69 in chassis fits into spaces other scissor lifts can’t
- Large work platform and 1,250 lb platform capacity so you can be more productive
- Standard four wheel drive and 35 percent gradeability keep you going
| Engine Model | Kubota 24.5 hp (Dual Fuel) |
| Engine Type - Diesel (HRC) | Kubota 23.5 hp (Diesel) |
| Fuel Tank Capacity - Diesel | 8 gal. / 28.39 L |
| Drive Speed - Platform Elevated | 0.50 mph / 0.80 km/h |
| Drive Speed - Platform Lowered | 3.50 mph / 5.63 km/h |
| Gradeability - 4WD | 35 % |
| Lift Time | 27 sec. |
| Lower Time | 21 sec. |
| Maximum Drive Height | 26 ft / 7.92 m |
| Platform Capacity | 1250 lb / 566.99 kg |
| Platform Capacity - Extension | 300 lb / 136.08 kg |
| Turning Radius - Outside | 14 ft 5 in. / 4.39 m |
| Ground Clearance | 8 in. / 0.2 m |
| Machine Height | 7 ft 10 in. / 2.37 m |
| Machine Height - Rails Folded | 6 ft 5 in. / 1.96 m |
| Machine Length | 8 ft 9 in. / 2.67 m |
| Machine Width | 5 ft 9 in. / 1.75 m |
| Platform Dimension A | 5 ft 5 in. / 1.65 m |
| Platform Dimension B | 8 ft 6 in. / 2.59 m |
| Platform Extension Length | 4 ft / 1.22 m |
| Platform Height | 26 ft / 7.92 m |
| Platform Height - Lowered | 4 ft 2 in. / 1.26 m |
| Platform Railing Height | 3 ft 8 in. / 1.1 m |
| Tire Size | 26 x 12 Lug Tread |
| Wheelbase | 6 ft 6 in. / 1.98 m |
| Brakes | Spring Applied, Hydraulically Released |
| Capacity - Hydraulic Reservoir | 15 gal. / 56.78 L |
| Ground Bearing Pressure | 33 psi / 2.31 Kg/cm2 |
| Machine Weight | 7360 lb / 3338.44 kg |
